CDMO Speeds its Line with Open-Source L4 Serialization System

“A lot of our challenges that we experienced came from the beginning phases of the L4 data exchange,” says DeSario. “Most of these issues occurred because of how new this was to the industry and we were still learning.”

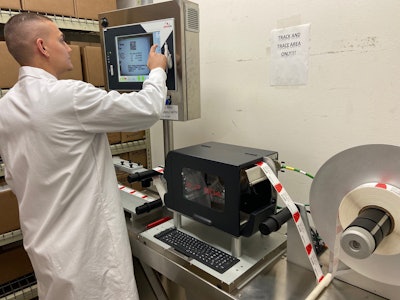

“Before serialization we had a very manual packaging operation. We now have become semi-automated and with that, we’ve sped up about five to 15% on our line as opposed to a lot of people who have said they’ve taken a cut."-Paul Hafey

Lesson learned along the way

For one client, Sovereign tried repeatedly to send the aggregation data of the serial numbers, but the operation kept failing and they couldn’t figure out why. The client’s consultant failed to tell them that even though they had six warehouses, they’d only set up one warehouse in their sandbox.

“We were sending it to the warehouse that we normally do, and it just continued to fail,” says DeSario. “That consulting group left and the next consultant came in and the very first thing they said was, ‘Why are you sending it to that warehouse? That’s not in our sandbox.’ As soon as we changed the GLN in the sandbox, it went right through the very first time we sent. So everything was actually confirgured correctly it was just communication and ensuring that we had all the right information from our clients. That back and forth went on for three months.”

Adding aggregation

Sovereign implemented serialization and aggregation on all three configurations of packaging lines at once. As Hafey notes, “We’re completely aggregated. That was one of the suggestions of Vantage … when we got the enforcement discretion in the first year; we weren’t initially going to do aggregation. But we could see it was coming down the road, and since we had the year to get everything in place, we decided to add aggregation.”

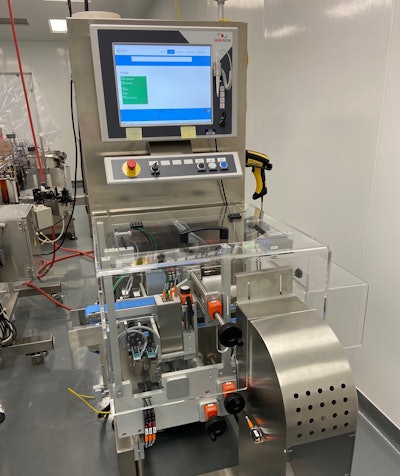

Sovereign uses Antares hardware designed for small manufacturers with ID Technology pieces installed.

They were able to begin by Nov. 27 2018, aggregating bottle to bundle, bundle to case and case to pallet:

• With standalone units from Antares, operators hand-scan labels which are pre-printed offline with serialized labels. Labels are brought onto the line pre-serialized, but not commissioned.
• Once bottles are labeled, before they go into the bundler and are commissioned, the system prints out a small leader code—a 2D datamatrix—on the 12^th bottle or the 6^th, whichever is the last of the bundle.
• Then bottles are put into the bundler. When they come out, the 2D code on the bottom of that bottle is scanned. The bundle is pushed down the line, receiving a bundle label and all the bottles are married together.
• They then go into cases, and case labels are printed.
• DeSario determines how many cases go on a pallet, and when it hits that last case, the system automatically prints out the pallet label that tells the total number of aggregated bottles on that pallet.

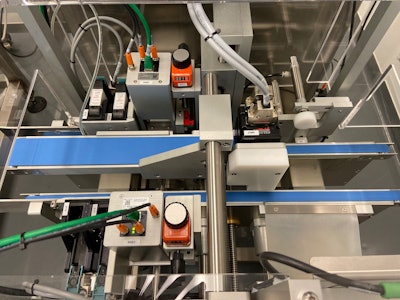

Antares Print & Check EVO

 Benefits of open-source

QU4RTET allows Sovereign to customize the system to fit their needs as well as adding additional features to meet the needs of trading partners. A prime example of this is when the QU4RTET system could be programmed to meet the time stamp requirements for a SAP ATTP system to allow the SAP system to successfully process EPCIS messages, as it detects an error in having the same time stamps down to a millisecond in any two salable units.

Hafey says, “With open-source, we’re able make the connections ourselves. For other systems, you have to go through the vendor and they have to do the programming for you. Vantage helped us at first and did the initial set up. Then they taught Ryan the code, and now he can set up all our clients and connect to other L4s such as Tracelink or rfXcel.”

 OEE gets a boost

Sovereign actually became more efficient after their serialization journey, training existing employees on the new process. “Overall equipment effectiveness has increased as we are more efficient in packaging,” says Hafey. “Before serialization we had a very manual packaging operation. We now have become semi-automated and with that, we’ve sped up about five to 15% on our line as opposed to a lot of people who have said they’ve taken a cut. Initially, in that first month or two we took a hit, but our packaging people caught on fairly quickly. We had laid out how we thought it should go and they found some ways to make it more efficient in how they scan the codes and stack the cases to get them ready. So we actually have sped up.”

Waste reduction

The system was costly at multiple millions of dollars per line. But the company has already seen a reduction in waste, both in time and materials.

Per DeSario: “At the end of packaging, you always have to reconcile for all your labels to make sure you don’t have any bottles without a label. With this system, the reconciliation is completed as soon as the packaging is completed.. Previously, we would have to go back through and inspect if our count was off.  With the implementation of serialization we have not had any reconciliation issues.

“Sometimes a product would have to be repackaged and there’s wastefulness in the time and packaging materials if you had to go back in and inspect and then rebundle the product. From that standpoint, there’s definitely been some savings. Sometimes if the lot number and expiration date stamp would malfunction there could be bottles that went through and were rejected and then we would have to fix the labeler and repackage those bottles with bad labels. Now we have pre-printed labels that have already been inspected. There are quite a few scenarios we no longer go through because of serialization.”
