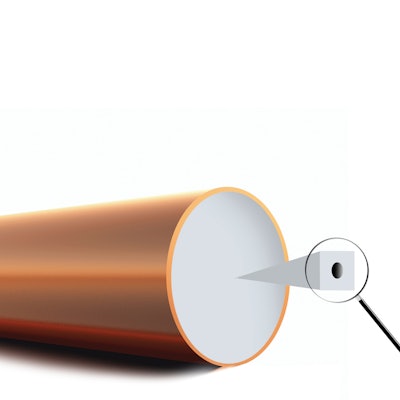

Molex, LLC’s Polymicro Technologies™ nano-Capillary tubing line features tubing with internal diameters (IDs) from 200 to 1,000nm (0.2 to 1.0μm).
Traditional capillary tubing products do not offer IDs smaller than 1μm. Prior to the development of nano-Capillary tubing, the scientific, industrial and medical communities’ leading options for sub-1 micrometer diameter substrates were wet-etch or ion-beam milling, both of which are expensive and relatively inaccessible.
The tubing delivers cost-effective, high-performance capillary tubing in the sub-1 micrometer regime. The substrate for packaging integrity and leak testing also offers the potential for single-molecule research and analysis. Diameter control is assured through SEM verification.
Synthetic fused silica offers mirror-smooth interior surfaces that enable stable flow of liquids and gases. The material’s low metal ion content provides an inert inner surface and facilitates efficient cleaving or cutting for custom tubing lengths. In addition, a polyimide coating on the tubing exterior offers excellent abrasion-resistance during handling and use and allows the tubing to be used in temperatures ranging from -65ºC to +350ºC.
Industrial applications include package leak testing, evaporative cooling systems, petroleum analysis, and catalytic research. Medical applications include drug delivery, flow-control systems, clinical and diagnostic devices and wearable drug delivery devices.
