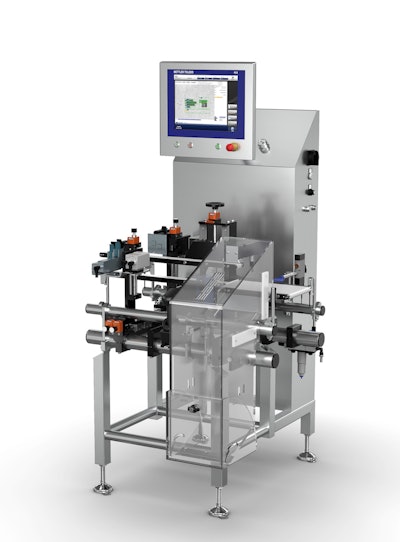

METTLER TOLEDO PCE has launched a labeling and verification system that will help pharmaceutical manufacturers and contract manufacturing organizations (CMOs) meet stricter global serialization regulations. The new T2620 is a compact system for the track-and-trace labeling of cartons in accordance with the Falsified Medicines Directive (FMD) in Europe, the Drug Supply Chain Security Act in the U.S., and other global regulations. The T2620 goes to market in two model variants—for cartons with a width of up to 150mm and those with a width of up to 250mm. Both are said to guarantee pharmaceutical manufacturers and CMOs fast delivery and installation of the system with standard configurations, which the company notes will be increasingly important over the coming weeks and months as the FMD deadline of February 9, 2019 approaches. The T2620 system supports the track-and-trace-compliant printing of data such as serial numbers, batch numbers, expiry dates and static product identifiers on the carton, together with a datamatrix code containing the same serialization information. The combined system then verifies the accuracy and quality of the printed information using a camera. The T2620’s compact design saves production space and the system can be easily integrated into new production lines or added to upgrade existing ones. The T2620 is compatible with all METTLER TOLEDO PCE software for data management, serialization and aggregation, such as PLM and PLM Direct, and can be seamlessly integrated into existing ERP environments via the PCE Software Suite.
The T2620 system features the latest frame technology from the METTLER TOLEDO C33 Series of checkweighers, making it stable and vibration-free. It also ensures precise mechanical product transfer and a smooth and secure product flow when interacting with systems that are optimally aligned with each another. The T2620 takes the cartons requiring printing directly from the cartoner by means of a transfer unit. Thanks to the user interface on the terminal for calling up stored product data and the easy-to-use manual setting options, the system can be quickly adapted to new products and carton dimensions. The printer unit prints the serialization data and codes on the front or rear side of the cartons. Cartons with data successfully verified by the camera system are stored in an internal database with the status “commissioned.” The logs created at the same time serve as the proof of quality required by GMP. Cartons that do not meet the requirements of ISO 15415 during the inline validation of the print quality of the data matrix code, or that are otherwise defective or illegible, are ejected into the reject bin by means of a precision air nozzle or an optional pusher. The T2620 system has a belt speed of up to 80 meters/min for throughput rates of up to 400 cartons/min. While the T2620-150 model variant supports the processing of cartons with a width of up to 150mm and a fill weight of up to 300g, the T2620-250 model provides a solution for cartons with a width of up to 250mm and a fill weight of up to 1,100g. Both models are available immediately.
