Lazy Magnolia Blooms After Automation Influx

The seamers can be adjusted for a maximum of three seam sizes, and Lazy Magnolia  standardizes around 200 mm, 202 mm, and 206 mm. This range of can end/lid diameters allows Lazy Magnolia to seam seven different can varieties; an 8-oz sleek, a 12-oz sleek, 12-oz standard, 16-oz standard, 19.2-oz standard, a 21-oz “Arizona-style” can, and an 8.4-oz “Red Bull-style” can, Maros explains.

Each seamer can be changed over within about 30 minutes to run whichever can size Lazy Magnolia needs on a given day, with functionality to pull product from a single tank into two different sizes at once, one on each line.

“With both of those fillers behind one depal, we’re able to feed both of them consistently at speeds of 4,000 per filler, or 8,000 an hour total,” Maros says. That’s 133 cans/min, compared to the roughly 40 cans/min Lazy Magnolia produced with its legacy filler.

These fillers have been not only faster, but “very high quality, they’re very well put together, very user-friendly,” Maros says.

Just before lids are placed on each can, an undercover gasser injects CO₂ inside. The lidded cans are sent to the seamer within two to three seconds from there, limiting trapped oxygen in the cans to virtually zero. That translates to low dissolved oxygen in the beer, meaning high quality and shelf life.

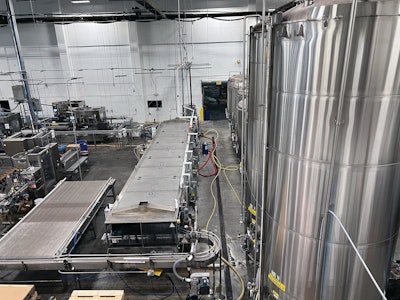

Once seamed, the cans are transported and combined via MCE conveyors into a single, foot-wide mass follow-style conveyor. The belt sends the cans through a Hermis TP-HRW 5 pasteurizer for a 42-minute dwell time.A single pasteurization tunnel with a 42-min dwell accommodates both cans and bottles at the same time.Lazy Magnolia

The pasteurizer ramps up to a temperature capable of killing any potential pathogens or spoilage organisms before cooling the cans back down to room temperature on exit. It can also be used simply as a warmer, Maros explains, “so the cans come out the other end dry. It’s very humid here in Mississippi, so we usually have to run it at a certain temperature just so the cans don’t sweat.”

The pasteurized cans are then single filed and sent through a series of in-house-fabricated air jets to further ensure removal of any moisture.

Once past the air jets, the cans can either be sent to a CVC Technologies Inc. labeler, or to an accumulation table if the cans are pre-printed.

Lazy Magnolia uses pressure-sensitive labels for its own cans, but also accommodates printed and sleeved cans for its contract packing customers. The brand aims to switch to printed cans for its own products once volumes are high enough though, “just because there’s gigantic money savings there,” Maros says.

Secondary packaging for cans is currently done by hand, with plans for automation soon. The brand’s current setup for beer products includes Pak Tech four-pack can carriers for 16 oz products, and six-pack carriers for 12 oz products. Trays are hand-folded, and multipacks placed in them by hand.

Further upgrades on the bottling line

Not to be outdone by the canning line, Lazy Magnolia’s bottling line received its own upgrades to help scale operations.

Lazy Magnolia can run 12-oz bottles of various shapes, as well as a 750-mL bottle usually reserved for specialty beers. The bottles are amber for in-house beers and most contract packing customers, and clear for Richard’s Rainwater. Bottles for the brewer’s own product are supplied by Colorado-based Owens-Brockway Glass.

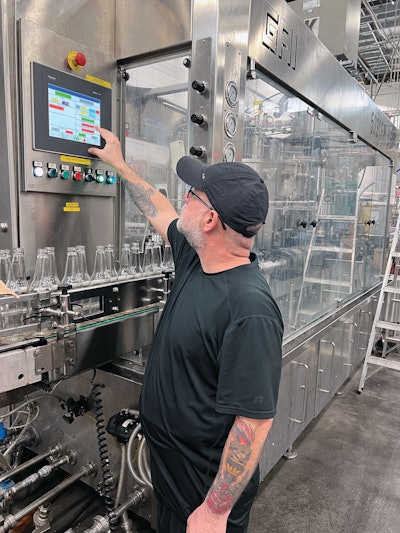

The bottling line starts with another Ska depalletizer, this one a bit older with an infeed at the filler level instead of overhead. From there, the bottles are sent to a GAI 16-head rotary filler with a three-head capper/crowner, which runs up to 5,000 bottles/hour, or 83 bottles/min.

The GAI filler is new to Lazy Magnolia, but it’s not the first time it’s been on a packaging line, as Maros explains, “our old [filler] was just very neglected, so we actually found this used one from a brewery out of New York.”

After filling and capping, the bottles are sent through the same pasteurizer that services the two canning lines, allowing the brand to pasteurize bottles and cans at the same time. “We run everything through the pasteurizer and pick off the cans after the pasteurizer at the accumulation table,” Maros says.

Bottles run through the same CVC Technologies labeler as the cans, where they are also date coded before heading to secondary packaging.

Room for more automation in secondary packaging

Now that front-of-line operations have been automated to allow for new business, Lazy Magnolia’s eyes are on its secondary packaging optimization, keeping a similarly quick pace as with earlier upgrades.

That starts with automating case packing for bottles, with the brand currently waiting for upgrades to arrive.

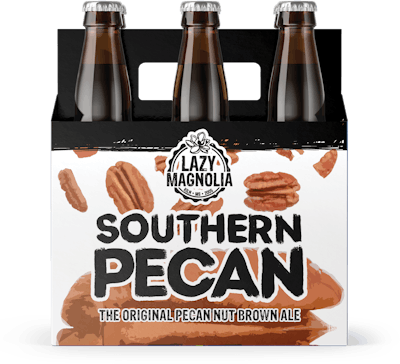

Currently, an offline master case erector from Eagle starts the process by assembling 24-count master cases of bottles. Six-pack carton carriers need to be manually erected and placed into the master cases. The cases with cartons inside are then manually added to an APE drop packer, which picks and places 24 bottles at a time.Bottling operations will soon get an automation upgrade by way of a box shop that will erect 6-pack carton carriers and the 24-count master cases that hold four carton carriers each. This upcoming box shop installation will then feed the drop packing operations.Lazy Magnolia

That process will be taken out of workers’ hands soon though, explains Maros, “we’re waiting on one new piece that’s going to be able to erect the six-pack carrier, put the four six-pack carriers into the master case, and then drop the bottles into the six-packs [with the APE drop packer], and then tape the cases as well.”

The master cases are palletized by hand, but the brewer plans to purchase a palletizer in 2025.

The canning line has its own automation upgrades in the pipeline as well. “Toward the end of the year, we’re going to get a Pak Tech machine that automatically puts [can carriers] on. We’re either going to get that or a HiCone machine, the plastic ring applicators,” Maros says.

This year’s plans also include a “continuous motion packer that makes the tray and then places the six-packs or loose pack in the tray,” Maros says. The brewer is specifically installing a DMM Packaging T300 tray former packer, as well as a DMM CTC 40 can carton packer, in about a year.

The brand’s 12-oz and 16-oz standard cans require trays with a different footprint than its 8-oz and 12-oz sleek cans, so its focus is on flexible equipment to accommodate the different sizes.

A bit further down the road in 2025, Maros also aims to have shrink bundling capability for cans.

Even as Lazy Magnolia finds itself in the middle of an upgrade plan, Maros sees major benefits to operations from the brand’s current progress. “Going to full automation, where you take the human factor out of it, you can literally cut your labor costs in half, especially on the packaging side,” he says.

As front-of-line productivity boosts are coupled with plans for further end-of-line automation, Lazy Magnolia continues to cement its legacy as Mississippi’s pioneering packaged beer brand, poised for growth in its own portfolio alongside its contract packing partnerships. PW
