Variable Barcodes to Boost COVID-19 Test Kit Experience

Adding patient information

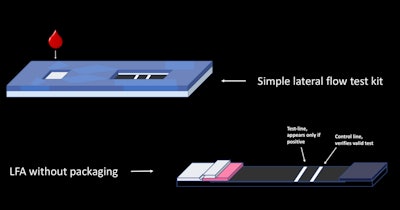

Allowing for additional patient information through an app can improve test accuracy. Certain LFAs benefit from a barcode more than others. Nemet says, “Let's take a pregnancy test. You’ll have a visible state with one or two lines and you can see them, but sometimes it's not very clear whether you have two lines or not.”

Another case may be that the manufacturer wants to add additional information to contribute to the test’s accuracy. “So it's not only the line, it’s the line plus, ‘Do you have fever? When was the last period?’ And then we can take all this information—with the intensity of the line—to give an answer. It's a complicated task made possible by using a computerized algorithm,” he explains.

Accuracy and recalibration

The option to recalibrate tests is another feature Varcode technology can accommodate. “Most pregnancy tests state they have a 99.X% accuracy rate. How do they know that this is the actual number? It’s based on tests they made in the lab,” Nemet says. But variations during assay production can potentially affect accuracy.

Too little gold color added to an LFA can cause a very light line to show, even if the patient has a positive result. Too much gold color added during production, and the consumer may see a false positive. Nemet says, “If you have big data—a large number of tests—you can recalibrate your test afterwards. This is critical when you're dealing with new viruses such as COVID-19 or the next COVID-20 that we all hope doesn’t come.” The idea is that they are storing the results in a database. As an example, a light line is thought to be “negative” at the outset of a pandemic. Later on with more testing conducted, researchers find the result was actually “positive,” and they can calibrate the app that even a light line is “positive.”

Currently, manufacturers are in a rush and building millions of tests. Nemet says that later on, manufacturers may want to recalibrate as the data sets become bigger, “and this is something you cannot do if you have a standard rapid flow test,” he notes.

Nemet says the added costs to manufacturing are nominal. “The manufacturing process is the same, we are just adding printing to the packaging which causes the barcode change. And of course, when you have a database, there are some costs related to that,” but dividing it by the number of tests, it’s reported by the company to be very small.

See it Live at PACK EXPO Connects Nov. 9-13: Semi-Automatic Medical Device Tray Sealing System, by Starview Packaging Machinery Inc. Preview the Showroom Here.

New applications in COVID-19 testing

When the magnitude of the COVID-19 pandemic was understood, a company that developed an RFT approached Varcode to build a mechanism to convert the barcode based on results.  Nemet explains, “They understood that they needed to have a sample database—they needed big data in order to recalibrate the tests and get more accuracy, to reduce false positive and false negative results.”

The COVID-19 application is the first use of the Varocde technology in the lateral flow test market—they are now working on FDA approval and they estimate that kits will hit the market before the end of the year based on current positive results.

“We are building a specific COVID-19 app because we want to get additional information about the extra symptoms in order to combine to the results,” Nemet explains. They also want to collect information about the exposure of the patient to other people, such as where they were, if they were using a subway, and when.

Of course, every country differs in privacy laws. In Israel, where Nemet is based, certain data is sent to the minister of health to contribute to public health decisions about offices, public spaces, etc. (See Privacy sidebar, below.)

Temperature indication

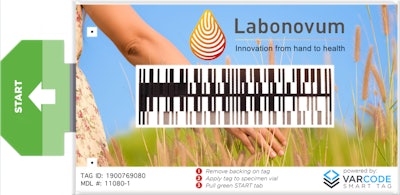

Varcode also produces temperature indication tags using thermochromatic ink for temperature-sensitive lab samples and products. In most cases vaccines are extremely sensitive to temperature, and Varcode has been approached by large pharmaceutical companies looking to ensure temperature compliance of the COVID-19 vaccines they’re developing.

At Netherlands-based Labonovum, a medical diagnostics company, the indicators are used for incoming patient samples (not related to COVID-19). Dennis Poland, clinical biochemist, explains, “When a blood sample arrives in our lab, the Varcode tag is immediately scanned. All the data is uploaded to our system and we get immediate feedback on the quality and condition of the sample,” he explains. “All of this happens within a blink of an eye without generating additional work on the floor. Most important however, is that we can guarantee a correct diagnosis.”

A future for other applications

This system is not only applicable to COVID-19. “The method of using AI and big data in order to collect data and recalibrate our tests will enable us to use this technology for other RFT kits, with the goal of being more prepared for the next epidemic that everyone hopes will not happen,” says Nemet.

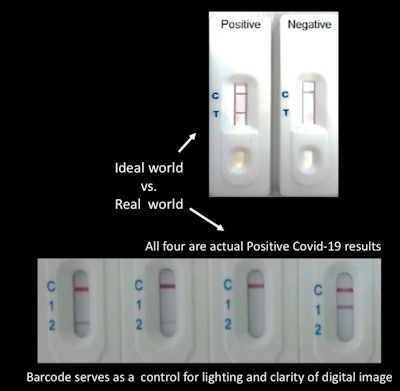

By offering RFTs with more intelligence, less is left to user interpretation. “If you have a very light line of IgM, the user may take whatever answer they want or expect. They may say, ‘It's much lighter than the control line, therefore I'm not sick.’ Another patient may think, ‘I have a line, and although it's very light, it's not nothing. So maybe I am sick,’” Nemet notes. “So the idea is to give an answer to the patient that’s not solely based on their opinion and their way of analyzing the line. Of course, we are analyzing those lines, but we can compare the result to thousands of different lines.”
