Flexicon: Flexible Screw Conveyor

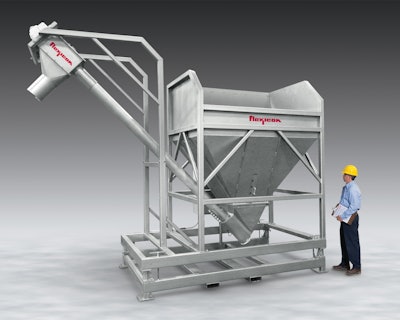

New extreme-duty Flexicon screw conveyor with purpose-built hopper transfers bulk material received from front-end loaders.

New extreme-duty Flexicon screw conveyor with purpose-built hopper transfers bulk material received from front-end loaders.
New extreme-duty Flexicon screw conveyor with purpose-built hopper transfers bulk material received from front-end loaders.

Flexicon’s conveyor consists of a heavy-gauge stainless-steel screw that rotates within an 8-in. dia. (200 mm) stainless-steel tube. Since the conveyor is driven at its top end by a 20 hp (15 kW) variable-speed electric motor and gear reducer, material exits the discharge housing prior to contacting any seals or bearings. The tube interior and removable screw are smooth and crevice-free, allowing rapid, thorough cleaning.

Rugged enough to withstand incidental contact with front-end loaders, the heavy-gauge stainless-steel hopper holds up to 8 tons (7 tonnes), or 200 cu ft (5.7 m3), providing an ample supply of material for the high-capacity conveyor to run continually as a front-end loader replenishes the material.

Self-contained on an all-stainless skid equipped with forklifting tubes, the system can be deployed in multiple indoor or outdoor locations with a single power connection, conveying a broad range of free-flowing and non-free-flowing materials from fine powders to large aggregates including abrasives, corrosives and materials with bulk densities up to 150 lb/cu ft (2400 kg/m3).

Material is conveyed at a 40-degree incline before discharging into downstream processing equipment or storage vessels.

The simple design is said to deliver efficient performance and high reliability while reducing maintenance and cost. The system is also available constructed of carbon steel
