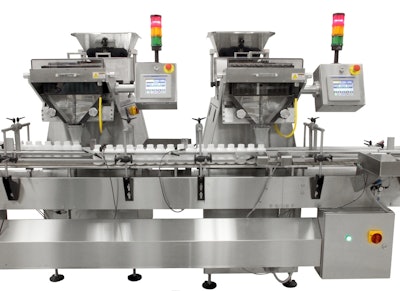

BellatRx’s Rx-12 is a high-speed electronic counter for solid-dose products such as tablets, gel caps, and capsules. The counter is available in single, twin, and quad configurations at speeds of 60 to 240 cpm for 100-counts (subject to product size).
With a compact footprint, the Rx-12 is designed to count a wide range of product sizes and address reduced speeds when running larger product sizes. No product change parts are required, and all parts are easily removed without the use of tools.
The Rx-12 is well suited for high-speed applications in the pharmaceutical and nutraceutical markets as well as for contract packagers who need flexibility to run a diverse range of products.
New features of the Rx-12 include the following:
• Handles a large range of product sizes for tablets, capsules, and spheres.
• Simplified product flow control for fast on-the-run adjustments.
• Small, light counthead with a slide system and multiple handles allows for easy removal.
• Pick-n-place, single-piece stage block assembly eliminates the chance of missing parts.
• Wider tracks accommodate pharmaceutical and nutraceutical product sizes.
• Tool-less changeover of all contact parts in 15 min or less.
• Diving nozzle prevents dust on the container lip and lost product.
• Allen-Bradley HMI and PLC standard on all Rx-12 counters.
• Quiet and expandable with no calibration requirements.
