Multi-Conveyor offers a pneumatic 90° transfer designed for products to be transferred 90° at 20 cycles/min. A box-in-box style pneumatic pusher design enables a change in orientation from a narrow edge leading from upstream equipment to a wide edge leading to downstream equipment as well as meets requirements to combine three lanes of product down to a single flow.
The device results in the elimination of pinch points associated with the mechanism itself. Care is also taken to avoid pinch points associated with adjacent guide rails.
The new system offers easy access for cleaning and sanitation of the mechanism. The adjacent rails and the product end-stop are removable. The stainless-steel cover over the assembly is detachable for access to removable air cylinder and UHMW slide guides for easy cleaning.
The pneumatic 90° push transfer can be used for traditional carton and case handling applications. The pusher can be custom-designed for various product sizes, weights, and rates as well as for the particular environment associated with the application.
Construction can be stainless steel or painted carbon steel with standard duty components or sanitary washdown components.

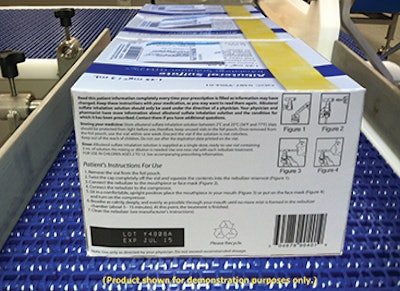

Note: Product shown in photo for demonstration purposes only.
