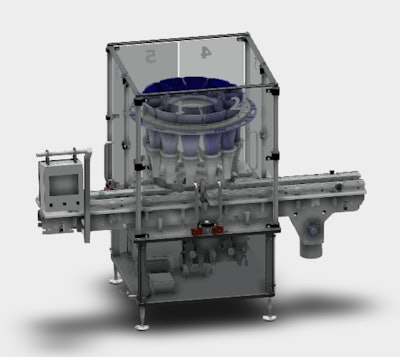

Compact Rotary Filler for Gummies

See it at PACK EXPO International, Booth S-2022! Spee-Dee Packaging will debut its 12-pocket compact rotary filler designed to fill gummy products into glass, paperboard, or plastic containers at speeds up to 70 bottles/min.

Spee Dee Compact Rotary

This content was written and submitted by the supplier. It has only been modified to comply with this publication’s space and style.

Retaining the main features of the company’s high-speed rotary, the new compact system features the same quick changeover components. Including magnetic funnels that do not require fasteners and tool-less change parts, it is ideal for various containers that require many changeovers. This compact design maintains the patented features that make Spee-Dee rotary systems ideal for nutraceutical gummies.

Spee-Dee's compact version was designed with price and speed in mind, bridging the gap between its intermediate inline systems and high-speed rotary. Reaching speeds up to 70 bottles/min, it can fill gummy products into glass, paper board or plastic containers and easily integrates with a single discharge multihead weigher or electronic counter. This compact rotary saves valuable floor space while doubling the speeds of a standard inline system.

Empty containers are supplied to the Spee-Dee rotary on a single lane conveyor and are pushed by line pressure into the servo driven main turret. The containers ride up the turret ramp and seal with the container adapters on the bottom of the product transfer funnels.

The multihead weigher or electric counter dispenses gummies into the fill buckets of the patented streaming system. A bottom rail vibration system is radiused around the turret to allow for optimal settling time of the product in the container.

Spee-Dee's compact rotary comes standard with a powerful HMI and PLC which is capable of not only controlling the weigher or electric counter but also providing permissive inputs on the PLC for upstream and downstream equipment. A photo eye detects the presence of each container as it enters the turret. If a container is missing from the turret, the system will inhibit the fill of product.


Fill out the form below to request more information about Compact Rotary Filler for Gummies
