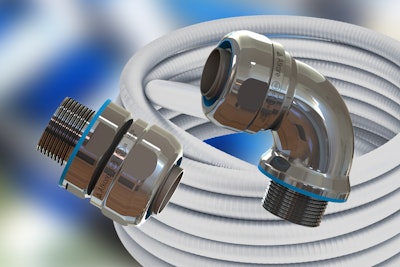

Atkore - Calbrite hygienic flex connectors are used to connect stainless hygienic flex conduit to other fittings, boxes, and enclosures. The stainless-steel flex straight and flex 90-deg connectors are UL 514B listed, CSA certified, NEMA 4X approved, NSF-ANSI 169 certified, and IP69 rated.
Featuring an FDA-grade polyamide 6 plastic conduit seal and insulated throat, as well as an FDA-grade thermoplastic co-polyester face and nut seal, for a low fire hazard, the connectors have an operating temperature range from -58°F to 275°F.
Both styles of connectors are laser marked to ensure hygienic safety and sanitary compliance, are easy to assemble, and connect to all Calbrite stainless-steel liquid-tight flex conduit. With no harboring points, the connectors can be used for food, beverage, and pharmaceutical processing applications.
The hygienic flex straight connectors are available in ½- to 2-in. trade sizes, while the hygienic flex 90 models are available in ½- to 1-in. trade sizes.
“These two UL-listed hygienic fittings add to one of the industry’s largest offerings of stainless steel flex conduit and flex fittings” says Matt Westerfield, Atkore product manager. “Achieving UL listing on these two connector types speaks to the quality and performance now available in hygienic applications utilizing stainless-steel flex conduit.”
