Due to the open, manufacturer-independent standard of the IO-Link interface, convenient integration options are available for machine control systems from all leading providers. IO-Link master components can be used to network multiple devices on a modular basis. This reduces complexity and cabling outlay as well as the costs involved in commissioning. The standardized wiring, combined with additional diagnostic features, improves serviceability and reduces downtimes in the event of errors. The IO-Link master allows parameter data to be read from a field device, stored, and loaded onto a new device of the same type when the old one is replaced – even while the process is still running.
Communication right to the cloud
In the Industry 4.0 (smart factory) environment it is often not enough to exchange pure process data; rather, the communication must also enable values to be retrieved for diagnostic purposes, such as final stage temperature, motor current, and various voltage values. The electronic type plate further offers clear identification of the unit type, plus the serial number and the hardware and software versions, which also facilitates planning of maintenance intervals.
Condition monitoring and predictive maintenance
The positioning drives provide specific data via the IO-Link interface, so that it can be used for tasks such as condition monitoring and predictive maintenance in centralized, higher-level systems, in some cases in the cloud. With the open IO-Link standard, a wide range of network components from various manufacturers is available so that seamless communication can be realized from the field level up to the cloud, securely and simply.
All-round solution for minimum installation spaces

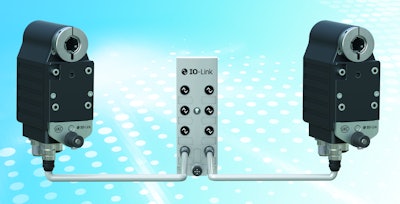

Even with axle spacings of just 37 mm, the two adjacent AG03/1 positioning drives do not interfere with each other and so can be used with axles that are very closely positioned to one another. Integrated with the positioning drive in a compact housing just 80 mm deep is the position measuring system, all the control electronics, and the IO-Link interface.
50W drive for a wide spectrum of applications
The brushless 24V EC motor has an output of 50W, is not subject to wear and so offers a long service life. Yet its 3.2 Nm of torque and its maximum speed of up to 100 rpm ensure top performance for adjustments of formats, stops, and tools. The absolute magnetic measuring system, with 1600 steps per revolution, outputs position values with high resolution – over the entire travel path of ±6250 revolutions. Accordingly, reference movements on drive startup are no longer necessary. Further, the magnetic measuring system has proven to be resistant to dirt, moisture, shock, and vibrations.
