H2W Technologies' linear stepper motors are capable of precise position, velocity, and acceleration control when coupled with a micro-stepping drive and indexer.
The moving assembly called the forcer is supported by magnetically preloaded air bearings that are embedded in the active surface of the forcer, and on a single side of the platen to minimize the physical contact of bearings on the platen. The bearings are designed to support the customer’s payload and to maintain the required 0.0005 in to 0.0010 in [12 to 25 micron] air gap between the platen and the forcer.
The step and direction signal comes from a micro-stepping drive (2 or 4 phase). An indexer is required to send step and direction signals to the driver. For 2-phase motors, the full step is 0.010 in [250 microns] and for 4-phase motors the full step is 0.005 in [125 microns]. With micro-stepping, resolutions in the order of 0.5 to 1 micron are achievable.

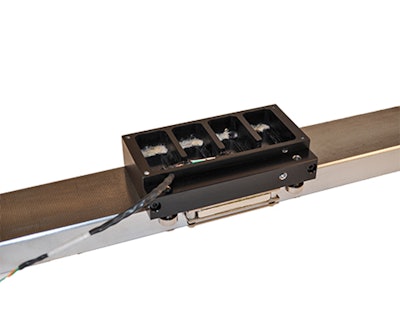

The single axis linear stepper motor is a complete air bearing positioning system with the motor, the bearings, and the positioning system all built into one compact package. Integrating a linear encoder with the stepper motor allows for a hybrid, closed loop positioning system.
Advantages:
·Low profile and small cross section
·High Speed
·No servo tuning required
·Multiple forcers on a single platen
Applications:
·Pick and Place
·Wire bonders
·Parts transfer
·Fiber optic
